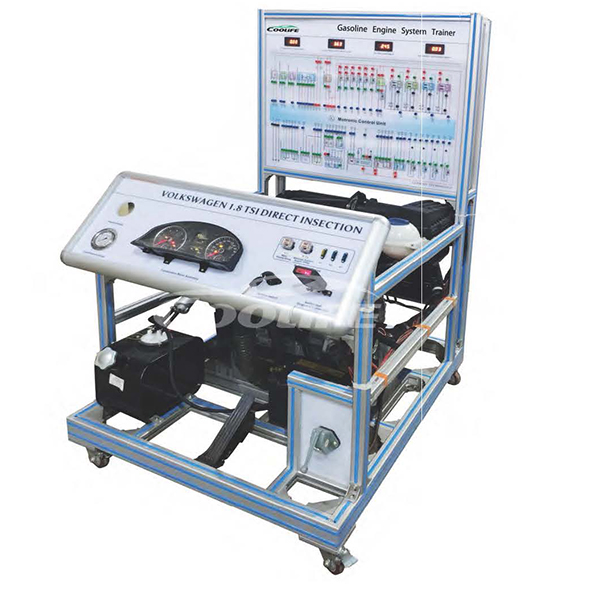

Fully functional live engine systems allow for demonstrations to student groups, facilitating clear demonstrations of gasoline engine performance and operational principles.

Wiring diagrams are intuitively painted on the panel. The trainer is equipped with test points for diagnosing various electrical signals from the engine control unit's input sensors and output actuators, such as resistance, voltage, current, frequency, and waveform signals.

An OBDII data link connector is installed for connecting to an automotive decoder to read, clear fault codes, and access the data stream from the engine's electrical control system.

The training bench is outfitted with a dashboard, fuel gauge, and vacuum pressure gauge to illustrate changes in parameters like engine speed, injection pressure, and intake manifold pressure.

The bench is equipped with a master power switch, water tank protector, flywheel protector, and other protective devices.

Equipped with an intelligent fault insertion and appraisal system, it includes troubleshooting and assessment functions, controlled via an app installed on a mobile phone.

The training bench is mounted on a movable stand with a self-lock feature for the wheels.

Size: 1400mm x 1000mm x 1800mm (L x W x H)

Operating power supply: 12V DC

Fuel tank size: 10L

Operating temperature range: -40℃ to +50℃
