I. Features:

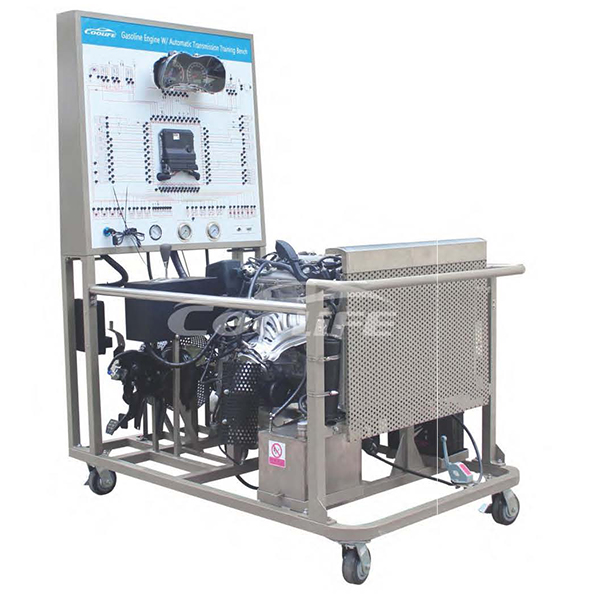

The fully operational live engine with an automatic transmission system enables comprehensive demonstrations for student groups, simplifying the illustration of the performance and operational mechanisms of gasoline engines and automatic transmissions.
The panel displays wiring diagrams and includes test points for diagnosing a range of electrical signals from both engine and transmission sensors and actuators, such as resistance, voltage, current, frequency, and waveform signals.
An OBDII data link connector is integrated to facilitate connection with an automotive decoder, enabling users to read and clear fault codes and access the data stream from the engine's electrical control system.
Equipped with a dashboard, fuel meter, and vacuum pressure meter, the training bench demonstrates dynamic changes in parameters like engine speed, driving speed, gear position of the automatic transmission, injection pressure, and intake manifold pressure.
The bench features fixtures for the automatic transmission output shaft, allowing for stall testing and examination of the power parameters of both the engine and transmission.
Essential safety features on the training bench include a master power switch, water tank protector, output shaft protector, and other protective devices.
It boasts an intelligent fault insertion and appraisal system with capabilities for troubleshooting and assessment, all controlled via a mobile app.
The bench is mounted on a movable stand equipped with self-locking wheels for ease of relocation.
Size: 1600mm x 1000mm x 1800mm (L x W x H)
Operating power supply: 12V DC
Fuel tank capacity: 10L
Operating temperature range: -40℃ to +50℃
