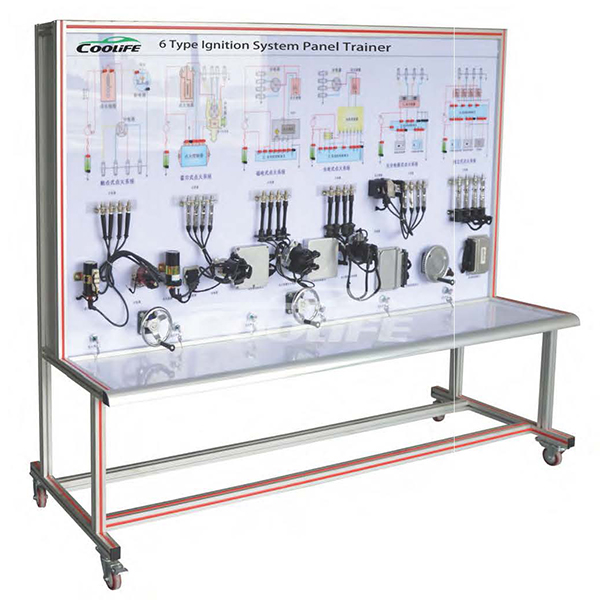

Diverse Ignition Systems: This trainer showcases six real and operable ignition systems, including mechanically timed ignition, hall effect electronic ignition, magnetic trigger electronic ignition, optical trigger electronic ignition, distributorless ignition (one coil per two spark plugs), and Coil-On-Plug (COP) systems.

Diagnostic Capabilities: Equipped with test points to diagnose electrical signals such as resistance, voltage, current, and frequency across various circuit components of the ignition systems.

Educational Wiring Diagrams: Detailed wiring diagrams are painted on the panel, aiding in the understanding and troubleshooting of each ignition system.

OBDII Interface: Features an OBDII data link connector for connecting to automotive scanners, facilitating the reading and clearing of fault codes, and accessing data streams from the ignition control system.

Interactive Learning: The inclusion of a crankshaft position sensor and signal wheel handle allows for interactive demonstrations of the ignition timing and triggering process.

Safety and Convenience: The panel is designed for safe operation, powered by a 12V DC supply converted from 220V AC, ensuring protection against short circuits.

Fault Simulation System: Incorporates an intelligent fault insertion and appraisal system, managed via a mobile application, to enhance diagnostic skills and problem-solving capabilities.

Portability and Stability: Mounted on a sturdy, movable stand with self-lock wheels, making it ideal for educational environments where mobility is required.

Mechanically timed ignition system components, hall effect electronic ignition components, magnetic and optical trigger electronic ignition components, distributorless ignition system components, crankshaft position sensor, signal wheel, fuse box, and related instructional panels.

Dimensions: 2400 mm (L) x 700 mm (W) x 1800 mm (H)

Operating power supply: 12V DC converted from 220V AC

Designed to offer a practical and interactive learning experience for students studying automotive ignition systems.
