Key Features:
Detailed System Demonstration: Utilizes a real and operational engine electronic control system to demonstrate the intricacies of fuel injection, enhancing the educational experience.

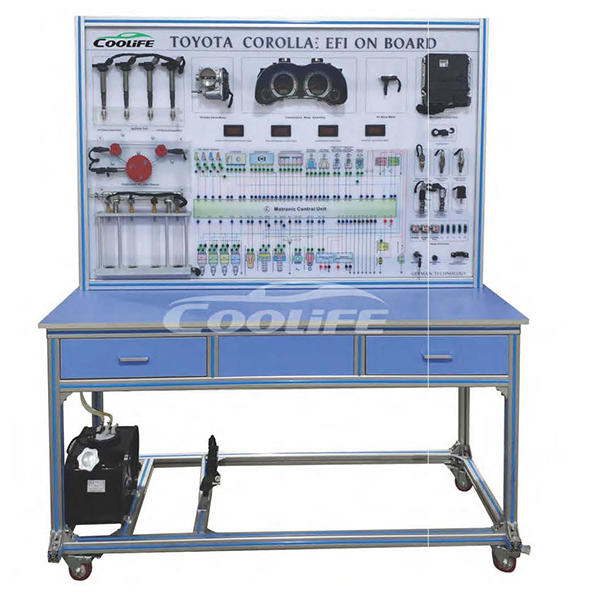

Comprehensive Wiring Diagrams: Detailed wiring and principal diagrams are displayed on the panel, providing clarity on the system's electrical connections and functions.
Diagnostic Functionality: Features test points for diagnosing electrical signals such as resistance, voltage, current, and signal pathways, enabling effective troubleshooting and learning.
Practical Operation Insights: The panel includes a diagnosis socket for connecting automotive scanners, facilitating the reading and clearing of fault codes and accessing data streams from the fuel injection system.
Interactive Learning Environment: The design allows for the illustration of the electronic control system's components and operation, including spark plug ignition, oil pump activity, and fuel injections.
Safety and Mobility: Mounted on a sturdy, movable stand with self-locking wheels, ensuring safe and versatile use in various educational settings.
Advanced Fault Simulation: Incorporates an intelligent fault setting and appraisal system, controlled via a mobile application, to enhance diagnostic skills and problem-solving capabilities.
Engine assembly, engine control module, diagnosis socket, checking connectors, ignition switch, fuel pressure gauge, multi-point injection system components, battery, relay, fuse box, and mounting stand.
Dimensions: 1600 mm (L) x 700 mm (W) x 1700 mm (H)
External power supply: A.C. 220V ± 10% 50Hz
Operating voltage: 12V DC
Designed to provide a hands-on understanding and in-depth knowledge of gasoline engine electronic control and fuel injection systems.
