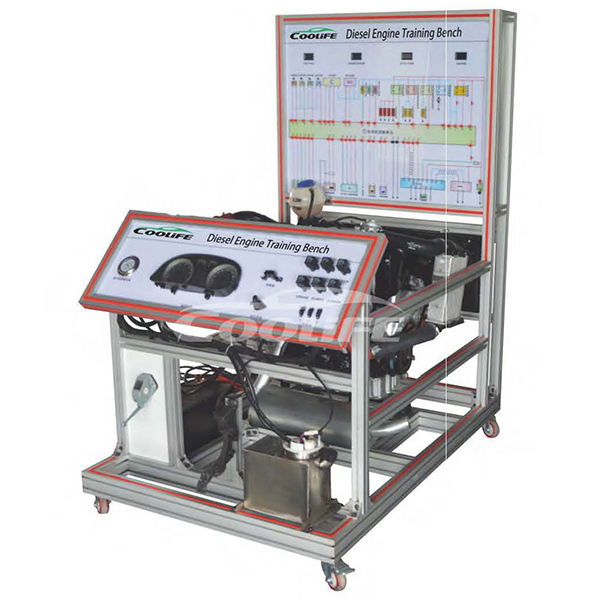

Key Features:
Operational Diesel Engine: Provides a real and functional diesel engine system to demonstrate the structure and working process, offering a practical learning experience.
Educational Wiring Diagrams: Detailed wiring and principal diagrams are featured on the panel, enhancing understanding of the diesel engine's electrical connections and functions.
Diagnostic Tools: Equipped with test points for checking resistance, voltage, current, and signals of various sensors and actuators, facilitating effective troubleshooting and learning.
Interactive Dashboard: The training bench is installed with a dashboard to illustrate changes in parameters such as engine speed, water temperature, and fuel pressure.
Throttle Controller: A throttle controller is integrated into the bench for dynamic demonstration and analysis of engine operation.
Safety Features: The system includes a master power switch, water tank protector, flywheel protector, and other safety devices for secure operation.
Fault Simulation System: Features an intelligent fault setting and appraisal system, managed via a mobile app, to enrich the diagnostic learning experience.
Durability and Mobility: Mounted on a sturdy, paint-coated steel base frame with self-retention wheels, ensuring both durability and ease of movement within the training environment.
Engine assembly, dashboard, checking connector, throttle controller, various sensors and valves, protection devices, steel base frame, and wheels.
Dimensions: 1400 mm (L) x 1000 mm (W) x 1800 mm (H)
Operating power supply: 12V DC
Fuel tank capacity: 10L
Designed to provide comprehensive training on diesel engine systems, enhancing understanding and hands-on skills.
