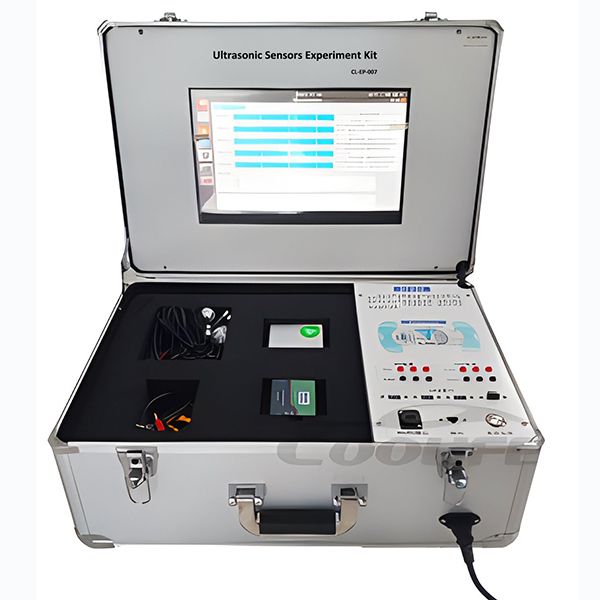

CL-EP-007: Ultrasonic Sensors Experiment Kit　

I. Experiment Box Core Construction

This experiment box is a teaching tool designed around one of the key technologies of smart connected vehicles: the ultrasonic sensor system. It extracts the ultrasonic sensor module in its entirety, forming a feature-rich educational and experimental platform. The box contains a complete set of equipment, allowing teachers and students to conduct independent Ultrasonic Sensor experiments and training without the need for additional auxiliary devices.

I. Ultrasonic Sensor Detailed Parameters

· Measuring Capability

o Range: 130mm to 5000mm, suitable for a variety of distance measurement needs.

o Blind Zone: The nearest blind zone is 13cm, optimizing close-range detection performance.

· Beam Angle

o Adjustable Range: 10 to 60 degrees, adaptable to different measurement environments and targets.

· Working Conditions

o Temperature Adaptability: The processing board and probe can work stably in environments from -40 to 85 degrees Celsius.

o Accuracy: 5mm at close range, and the accuracy of distance detection at long range is 0.5% of the measuring distance.

· Power Requirements

o Voltage: Supports +12V to +24V, accommodating various power systems.

o Current: Operating current is less than 200mA, optimizing energy efficiency.

II. Display and Host Specifications

· Display

o Size: 13.3 inches, providing ample visual display space.

o Resolution: 1920×1080 high-definition, ensuring a refined visual experience.

o Interface: Equipped with mini HDMI, 3.5mm headphone jack, built-in dual speakers, and HDR functionality, enhancing the multimedia display effect.

o Power Requirement: DC12V, adaptable to various usage environments.

· Host

o CPU: At least 6 cores and 12 threads, with a base frequency of not less than 2.9GHz and a third-level cache of at least 12MB, to meet the needs of efficient data processing.

o GPU: Memory frequency not less than 1590MHz and memory capacity of at least 4GB DDR6, capable of handling high-load graphic processing tasks.

o Memory: No less than 8GB LPDDR4x at 2666MHz, ensuring quick system response.

o Storage: Solid State Drive (SSD) with a capacity of no less than 250GB, offering rapid read/write speeds and ample storage space.

III. Equipment Functionality

· Multi-mode Detection: The ultrasonic module can return data for various detection modes based on different instructions sent, demonstrating the flexibility and accuracy of ultrasonic technology in various application scenarios.

· Applicability to Teaching and Training: Suitable for educational and training environments, this box can be used to demonstrate and teach the working principles of ultrasonic sensors, detection techniques, and data analysis methods.

The ultrasonic sensor experiment box provides robust support for teaching that combines theory and practice, enabling learners to gain an in-depth understanding of ultrasonic sensors' application in smart connected vehicles, enhancing the interactivity and practicality of experiments and training.
