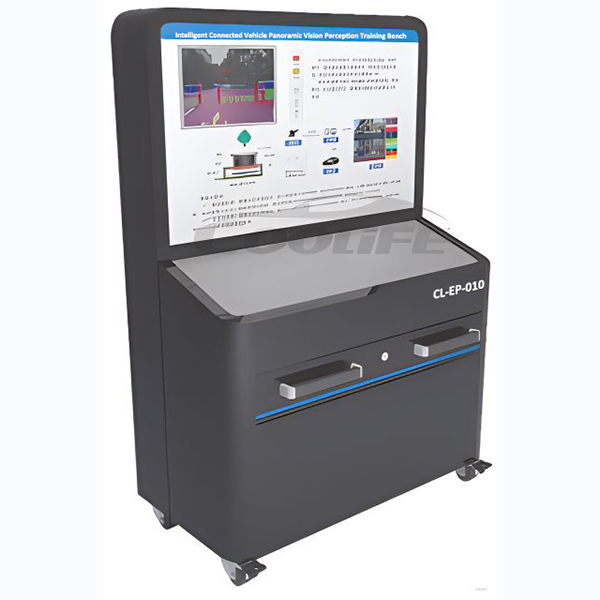

CL-EP-010: Intelligent Connected Vehicle Panoramic Vision Perception Training Bench

I. Training Stand Introduction

This training stand is constructed as an all-encompassing learning platform, aimed at providing students with a simulated real-road operating environment to facilitate the testing and learning of Advanced Driver Assistance Systems (ADAS) functions. The platform includes a complete road simulation system, control unit, and high-performance camera sensor. The road simulation system is intricately designed to replicate driving environments under various weather conditions, including sunny, rainy, and nighttime. The control unit utilizes deep learning technology for image processing and is capable of analyzing image data captured by the camera. Through this stand, students will learn the operational skills of camera installation, calibration, and parameter setting, and will gain an in-depth understanding of ADAS functions such as automatic lane maintenance and emergency braking.

I. Training Stand Configuration

· Intelligent Front-View Camera: Provides a clear view of the vehicle's front, effectively capturing road information.

· Visualization Teaching Software: Helps students analyze camera data and deepen understanding.

· Training Stand Structure: Includes sturdy stands and displays for showcasing simulated environments and data analysis results.

· Road Simulation System: Accurately simulates various road conditions and weather changes.

· IPC Industrial Controller: Efficiently processes camera data and executes image detection algorithms.

II. Educational Focus

· Camera Installation and Wiring: Master the correct installation and wiring process of the front-view camera sensor.

· Camera Calibration: Learn the calibration process to ensure the accuracy of camera data.

· Image Recognition Applications: Utilize visualization software for the recognition demonstration of vehicles, pedestrians, and traffic signs.

· In-depth Understanding of ADAS Functions: Gain a deep understanding of the principles of ADAS functions such as lane keeping and automatic emergency braking through practical operation.

III. Equipment Parameters

· Detection Target Types: Broadly recognizes various targets such as roads, vehicles, pedestrians, and more.

· Image Resolution: Provides high-definition images with 1280×800 resolution, ensuring data accuracy.

· Operating Temperature Range: -40°C to 85°C, capable of stable operation under extreme climate conditions.

· Output Interface: Utilizes LVDS interface to ensure high-quality image transmission.

· Field of View Angle: Offers a wide field of view with D(72°)/H(59.4°)/V(36°), comprehensively capturing the conditions ahead.

Through comprehensive learning and operational practice on this training stand, students will not only become proficient in the technical details of camera sensors but will also gain practical experience and a deep understanding of the key safety functions in intelligent networked vehicles, laying a solid foundation for future research and development in the field of intelligent automotive technology.
