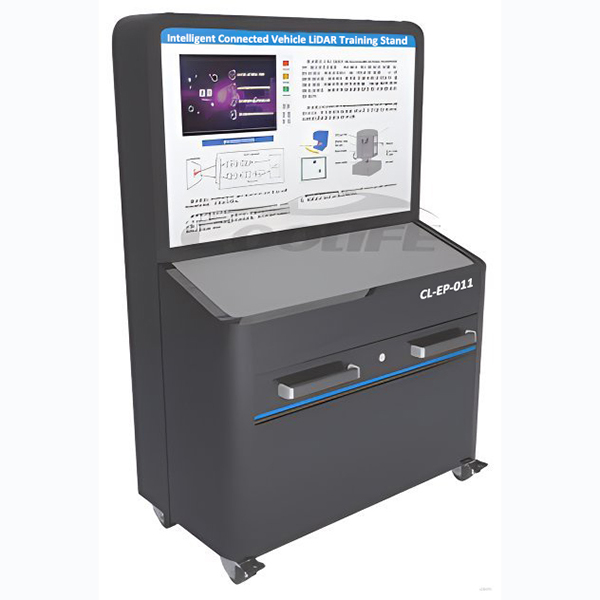

CL-EP-011:  Intelligent Connected Vehicle LiDAR Training Stand

I. raining Stand Introduction

The Intelligent Networked Vehicle Lidar Training Stand is an integrated high-end technology teaching device, aimed at providing students with comprehensive theoretical and practical education on automotive sensor technology. Equipped with market-leading lidar sensors, the stand achieves a wealth of educational objectives through real-time simulation demonstrations and data measurements. Built-in teaching software enables students to delve into the working principles of lidar, point cloud data processing, and how to use these technologies for obstacle detection and precise map construction. This equipment is an ideal choice for vocational technical colleges, higher education institutes, and professional training organizations for theoretical and skill-based teaching.

I. Training Stand Configuration

· Lidar: Equipped with a 16-line lidar, achieving precise measurement and environmental perception.

· Visualization Teaching Software: Assists students in intuitively understanding and analyzing lidar data.

· Stand and Display Devices: Structure includes stands and monitors for presenting simulated environments and analysis results.

· Industrial Control Computer: Serves as a high-performance data processing center for handling lidar data.

· Lidar Simulation Software: Creates a virtual training environment, providing a simulated experience of real operations.

II. Educational Focus

· Lidar Configuration: Teaches how to adjust radar parameters via software, reading and processing point cloud data.

· 3D Modeling: Uses visualization software for 3D mapping, enhancing students' spatial perception.

· Functional Testing: Utilizes specific software for precise testing of radar distance and angle.

· Obstacle Detection: Trains students to use lidar for obstacle identification and record analytical data.

· Lidar Calibration: Guides on the adjustment of lidar installation angles and positions to ensure calibration accuracy.

III. Equipment Parameters

· Field of View:

o 360-degree horizontal coverage.

o Vertical angle of at least 30 degrees to ensure ample vertical detection capabilities.

· Ranging Capability:

o Minimum detection distance of at least 50 meters to detect distant targets.

o Ranging accuracy of up to ±10cm, ensuring the provision of high-precision distance data.

· Ranging Channels:

o At least 16 channels, providing detailed point cloud data in complex environments.

· Data Output:

o 100-megabit Ethernet interface output, carrying key information such as distance, rotational angle, reflectivity, etc.

· Operating Conditions:

o A robust temperature range from -20℃ to 85℃, adapting to various climatic conditions.

o Voltage adaptability range of 9-32V, compatible with multiple power systems.

The Intelligent Networked Vehicle Lidar Training Stand provides students with a complete learning platform. Through hands-on operation and experimentation, students can profoundly understand the key role of lidar in intelligent vehicles and lay the foundation for future professional development in the autonomous vehicle industry.
