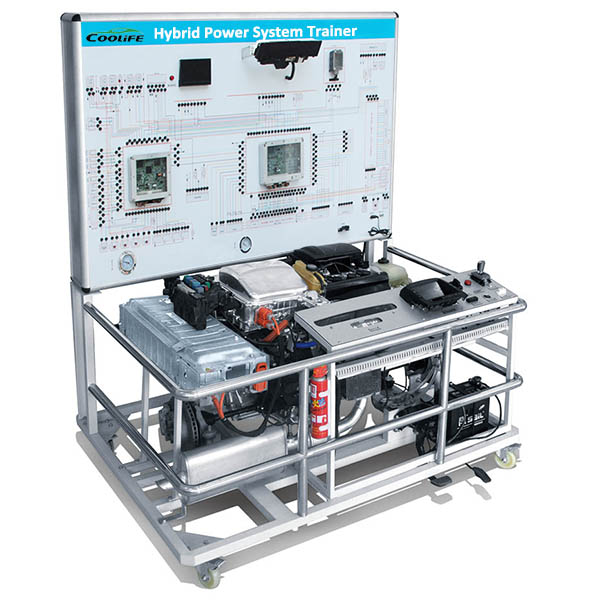

I Features:

1. Fully functional live hybrid power systems allow demonstration      to groups of students, easy to demonstrate the performance and working      process.

2. Wiring diagram is painted on the panel. Installs with test      points for diagnosis of various input sensors and output actuators      electrical signals of engine control unit, automatic transmission, hybrid      power unit, and power control unit pins' such as resistance, voltage,      current, frequency, and waveform signals.

3. OBDII data link connector installed for connecting to an      automobile decoder to read fault codes, clear fault codes, and read data      stream from the engine, automatic transmission, hybrid power, and power      electronically-controlled systems.

4. The training bench is installed with a dashboard and multi-functional      display to illustrate changes of parameters in the power transmission      process, speed, fuel pressure, light, and electronic control system      failure indicating light.

5. A master power switch, water tank protector, flywheel      protector, and other protection devices are installed on the training      bench.

6. Equipped with an intelligent fault insert and appraisal system      including inserted fault troubleshooting and assessment functions etc.,      this system is controlled by an APP installed on a mobile phone.

7. The training bench is mounted on a movable stand with self-lock      function wheels.

II. Include Components:Wiring diagram panel, combination meter, engine control module, OBDII data link connector, ignition switch, fuel pressure gauge, vacuum pressure gauge, engine assembly, fuel tank, petrol pump, throttle control device, intake and exhaust pipe (with protective cover), water tank, coolant fan, battery, relay, fuse box, mounting stand, automatic transmission control module, hybrid control module, battery control module, power control module, anti-theft control module, multi-function display, one-button start switch, inverter, high voltage fuel cell, high voltage cable, EV mode switch.

III. Standard Parameter:

1. Size: 1800mm x 1000mm x 1800mm (Lx W x H)

2. Operating power supply: 12V DC

3. Fuel tank size: 10L

4. Operating temperature: -40℃ to +50℃
