Product Overview:

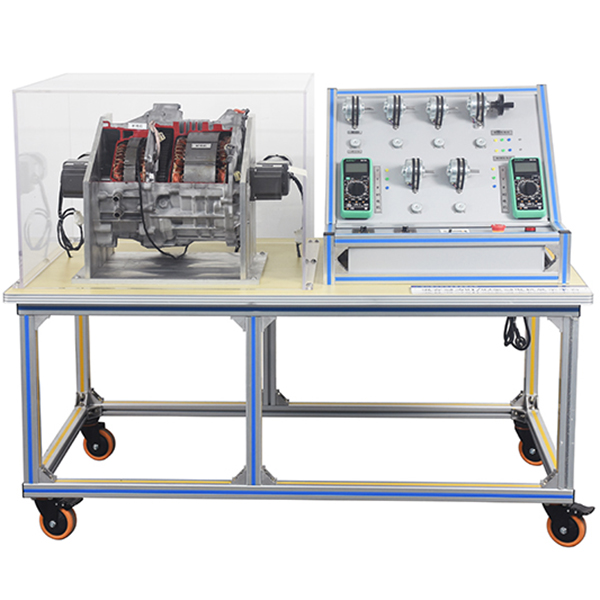

This training modelfeatures a dissected version of a Prius transmission drivetrain assembly,designed for educational purposes. It enables a clear demonstration of theinner workings of a hybrid transmission system.
The model includes an actual Prius transmission drivetrain assembly.
It is powered by a variable frequency motor that can operate at 0 to 800 RPM, providing a realistic demonstration of the transmission's operation.
Speed control of the motor assembly allows for the rotation of the M1/M2 within the transmission, illustrating the operational process of these components.
For safety, the model is equipped with transparent protective devices for moving parts, electrical leakage protection, and an emergency power switch to prevent accidental injuries.
The setup offers a direct view to understand the operational state of the MG1 and MG2 motors, the composition of the internal structure of the transmission drivetrain, and the method of power transmission.
Dimensions: 1400mm (length) x 800mm (width) x 1000mm (height)
Rated voltage: AC 220V, 50Hz
The model uses a Prius transmission drivetrain assembly.
The driving method utilizes a frequency-controlled speed reduction electric motor assembly.
Knowledge of the internal structure of the hybrid transmission M1/M2 system.
Demonstration of the internal mechanisms of the hybrid transmission M1/M2 system.
Explanation of the operational states and principles of the hybrid transmission M1/M2 system.
