Category:CL-HB-02 Hybrid Powertrains Chassis
Product Features:Original Powertrain: This educational model utilizes the original 1.8L Atkinson cycle internal combustion engine paired with an electric motor from the Toyota Corolla, allowing studen···
Product Features:
Original Powertrain: This educational model utilizes the original 1.8L Atkinson cycle internal combustion engine paired with an electric motor from the Toyota Corolla, allowing students to visually grasp modern automotive power technology.

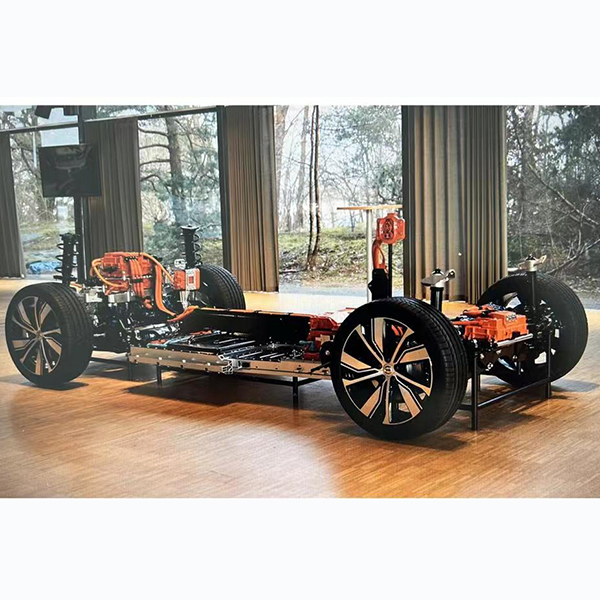

Exposed Chassis: The vehicle's body has been removed, leaving only the chassis and powertrain components exposed. All the power transmission components are out in the open for educational and learning purposes.
Support Structure: The educational model includes a support system to stabilize the chassis and powertrain. This structure reinforces the model and ensures stability for display and analysis.
Operational Capability: Despite the absence of the car body, the powertrain system is fully operational, enabling students to observe the system's actual functioning, including the operation of the engine, the starting of the electric motor, and their combined operation.
Educational Value:
Powertrain Layout: Students can see the layout and interconnection of the internal combustion engine, electric motor, battery pack, and the transmission system directly.
Suspension System: The model includes a complete suspension system, teaching students about its mechanics and influence on vehicle stability.
Principle Analysis: Designed with educational needs in mind, the model facilitates the explanation of the principles behind engines, electric motors, and the E-CVT transmission.
Hands-On Experience: Students can deepen their understanding of the powertrain's workings not just through theory but also through hands-on operation.
Technical Specifications:
Engine Model: 8ZR-FXE
Engine Power: 73 kW (99 hp)
Engine Torque: 142 N·m
Motor Power: 53 kW
Motor Torque: 207 N·m
Combined Power Output: 100 kW
Battery Type: Nickel-metal hydride battery
Transmission: E-CVT
Drive Type: Front-wheel drive
This educational model provides a practical tool for automotive technology education, enabling students to engage in hands-on learning and gain a profound understanding of core concepts in automotive engineering.
