EVC03 - Electric Vehicle Drive Motor Dissection Teaching Stand

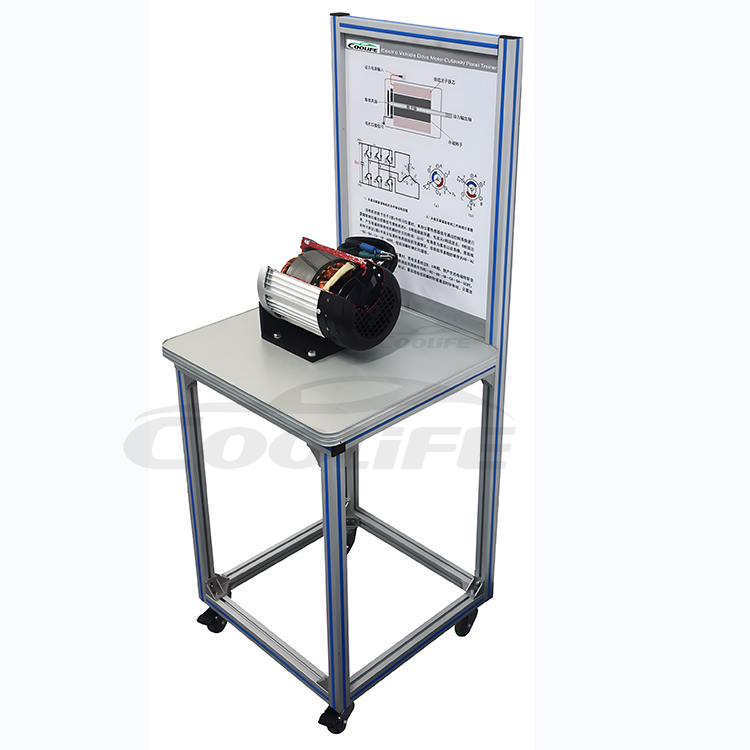

Product OverviewThis product is a 3KW three-phase permanent magnet brushless motor assembly designed specifically for teaching and practical training, mainly used for learning and understanding electric vehicle technology. This teaching device allows students to visually observe and learn the internal and external structures of the motor, the motor armature and rotor mechanisms, and the motor winding methods through the dissection of the brushless DC motor, further understanding its working principles and processes.

Functional Features

1. Provides a dissected display of a DC brushless motor, allowing students to delve into the motor's internal structure and working principles.

2. The motor's mechanical cross-section is marked with different colors of paint for easy identification of each component and its function.

3. Equipped with safety protection devices such as protective covers and insulating sleeves, ensuring safety during use.

4. The teaching stand is mobile, equipped with self-locking casters, facilitating use in different teaching environments.

Specifications

• Dimensions: 400mm x 300mm x 1400mm (Length x Width x Height)

• Operating Temperature Range: -20°C to 60°C

Product Composition

• 3KW Three-Phase Permanent Magnet Brushless Motor Assembly (for electric vehicles)

• Support Stand

• Protective Cover and Insulating Sleeve

Educational Objectives

1. Understand the structural composition of the DC brushless motor, including the constitution of the rotor and stator and their working principles.

2. Learn the working principles of the motor, including the motor armature and rotor mechanisms, and the motor winding methods.

3. Comprehend the motor's working characteristics, enhancing students' technical understanding and operational abilities through practical operation.
